RD480 Semi-automatic electric digital paper creasing machine

FOB Reference Price:Get Latest Price
$1,200.00 - $1,400.00 / Unit | 1 Unit/Units (Min. Order)
Samples:
Shipping:
Support Sea freight
Lead Time:
Quantity(Units) 1 - 1 2 - 3 4 - 5 >5
Est. Time(days) 1 6 10 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Creasing machine
Computerized:
yes
Place of Origin:
Zhejiang, China
Brand Name:
SIGO
Voltage:
220V/110V
Power:
135W
Dimension(L*W*H):
74*69*65cm
Weight:
95KGS
Certification:
CE/ISO9001
Product Name:
RD480 Semi-automatic electric digital paper creasing machine
Max. paper size:
460*900mm
The Width of Paper:
30-470mm
Paper Thickness:
100-400gsm
Feeding Speed:
35-50pages/min
Accurancy:
±0.3mm
Min Creasing Spacing:
0.8mm
Max. crease times:
32 (A4 paper)
Counter:
Yes
Blade:
Creasing line
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1 Year
Supply Ability
Supply Ability:
50 Unit/Units per Week . OEM for Creasing Machine, Pls Contact US.
Packaging & Delivery
Packaging Details
RD480 Semi-automatic electric digital paper creasing machine
1Pcs/Carton
Carton Size: 74*69*65cm
G.W.: 98KGS
Port
Ningbo/Shanghai Port
Lead Time :
Quantity(Units) 1 - 1 2 - 3 4 - 5 >5
Est. Time(days) 1 6 10 To be negotiated
Product Description

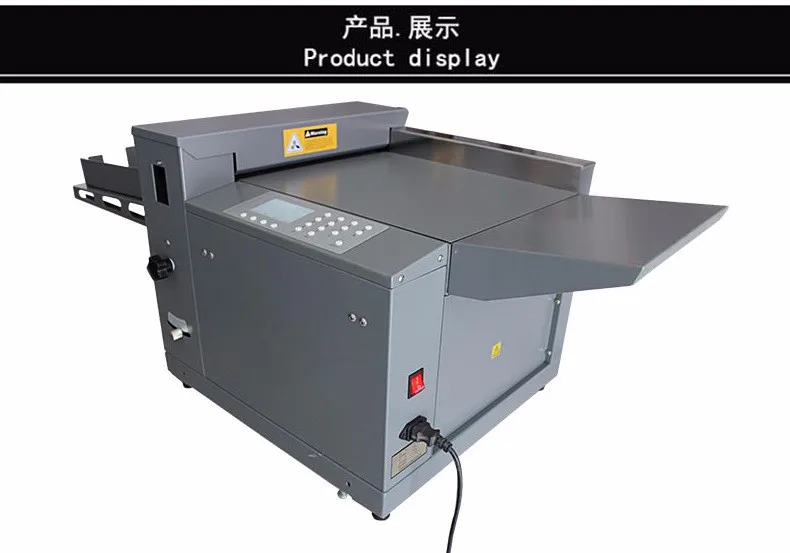

RD480 Semi-automatic electric digital paper creasing machine

SG-RD480 are new model digital creaser paper creasing machine is creasing for albums ,paper and cartons ,etc. It is designed by CE standard.

1. The Automatic high quality Photo Paper Creasing 2018 Lastest Product Digital Photo Paper Creaser is creasing for papers, photos and album covers.
2. It can crease 16 marks continuously at one time.
3. The distance between marks and the depth of marks is adjustable.
4. Autonomic computing for the size of books line, high efficency.


RD340/480 YouTube Video Link: https://youtu.be/yVUVjPhGxLA

Model
RD340
RD480
Feeding paper width
30-330mm
30-470mm
Feeding paper speed
35-50 sheets/min; 10-15m/min
Feeding paper thickness
100-450gsm
Precision
0.3mm
Creasing&perforating lines
1/16 lines each sheets
Knife with machine
Creasing & perforating blade
Creasing blade

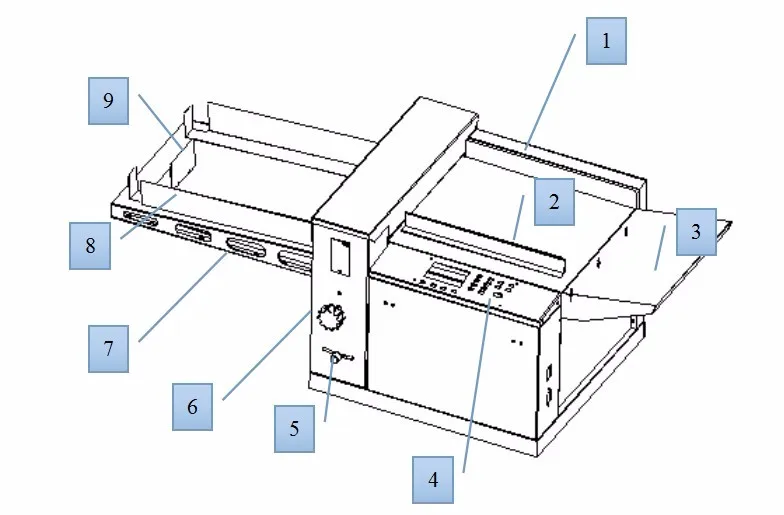

Detailed Images
1.Paper feeding tray back board
6.Oblique position locking screw
2.Paper feeding splint
7.Paper receiving plate
3.The lengthened paper feeding plate
8.Paper receiving splint
4.Control panel
9.Paper receiving tray back board
5.Oblique position adjusting handle

What's the RD480 make?

RD480 semi autoamtic electric paper creasing machine can make 16 lines on A4 paper contious. The creasing line is perfect and will not harmful the paper. It use for book cover, album, brocure,etc.

RD480 Semi-automatic electric digital paper creasing machine

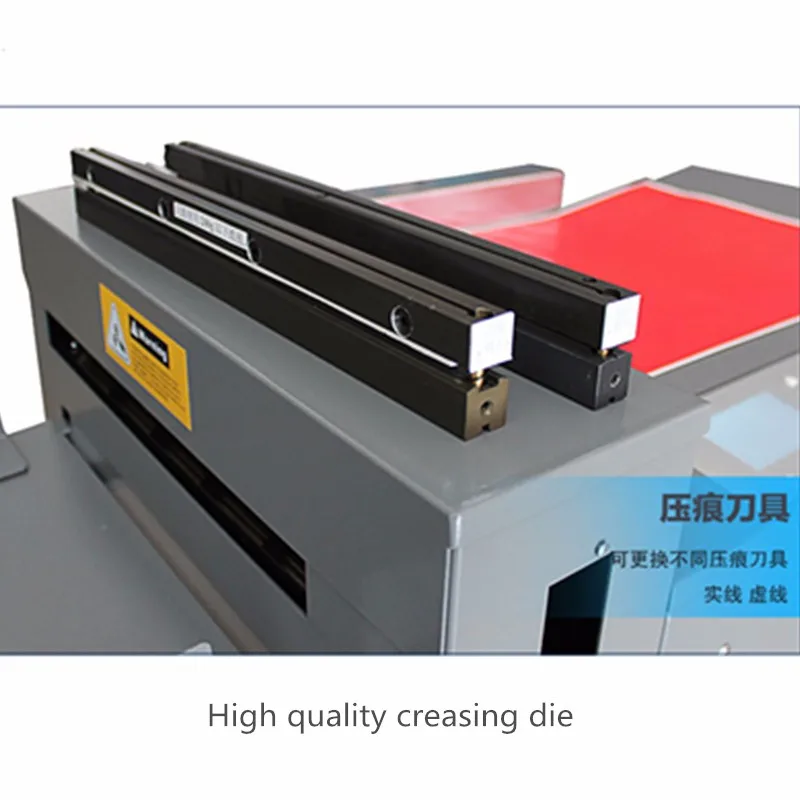

Knifes

Can be replaced with different indentation tool. Single creasing line and perforating line.

Change Knife

The use of pull is still to the model, convenient and quick..

Adjustment for Creasing & Perforating

Fast speed to adjust the position of working degree.
Esay to adjust the creasing & perforating deepth.

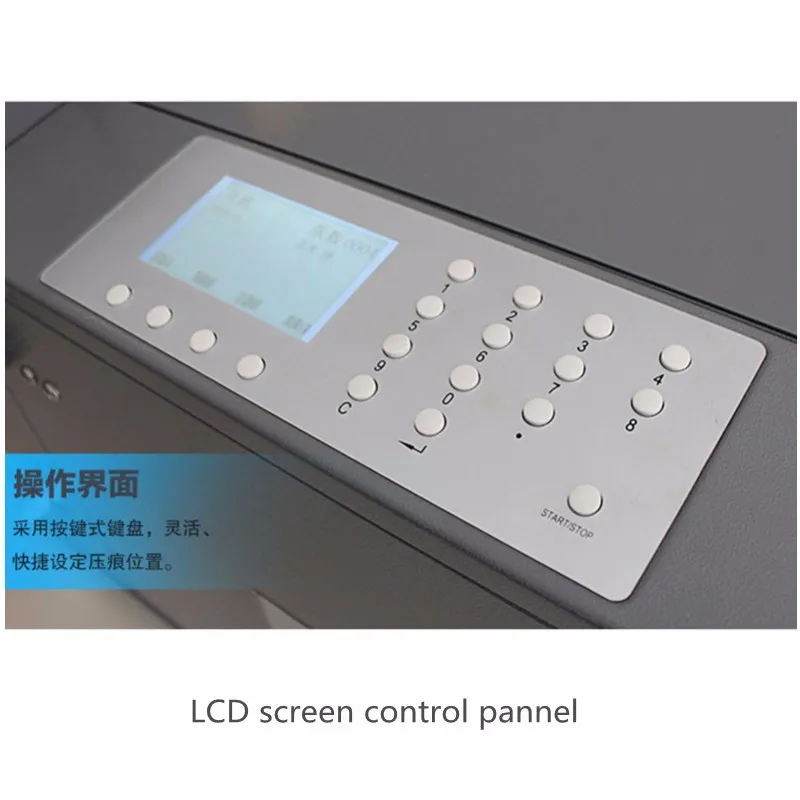

Operating Screen

RD480 adopt LCD screen to control the work. Esay and fast to set the position of creasing and perforating. Min. spacing 0.8mm. Precision reach to 0.3mm.

Packing & Delivery

RD480 Semi-automatic electric digital paper creasing machine

Packaging for Digital creasing machine
Size
66 (L) * 58 (W) * 62 (D)cm
Weight
70kgs



Packaging Details
The normal package is 1pcs/opp bag, 1opp bag each color box. And then packed box with kraft paper carton.(Size: L*W*H).
If you need shipping mark on out of carton, pls tell us before order. Otherwise we will paste "SIGO OFFICE SUPPLIES" on carton.
FAQ

1.Are you a factory or trading company ?

Yes, we are factory. Our factory located in Fuyang, Hangzhou.

1hour from "Hanghou Internatil Airport "to our factory. All our clients, from home or abroad, are warmly welcome to visit us!

2.How does your factory do regarding quality control?

Quality is priority. Our factory always attach great importance to quality controlling from the verybeginning to the very end. Our factory has gained CQC, ISO, SGS,FSC authentication

3.Can you give us discount if we make big order?

As a factory, we will provide offer with MOQ. If the quantity less than MOQ, we will add inland freight. If the quantity more than MOQ, we can negotiable the price.

4.How can i get some samples ?

We are honored to offer you sample to test it, around 4-5days arrived your hand after receive payment.

5.How to pay money?

We accept T/T, WESTERNUNION, WIRE TRANSFER, PAYPAL, 30% in advance,70% before shipment.

6.Can I make a OEM order?!

We can supply different sizes.our products can be customized with LOGO, PACKAGE, COLOR, etc.
